MB-24

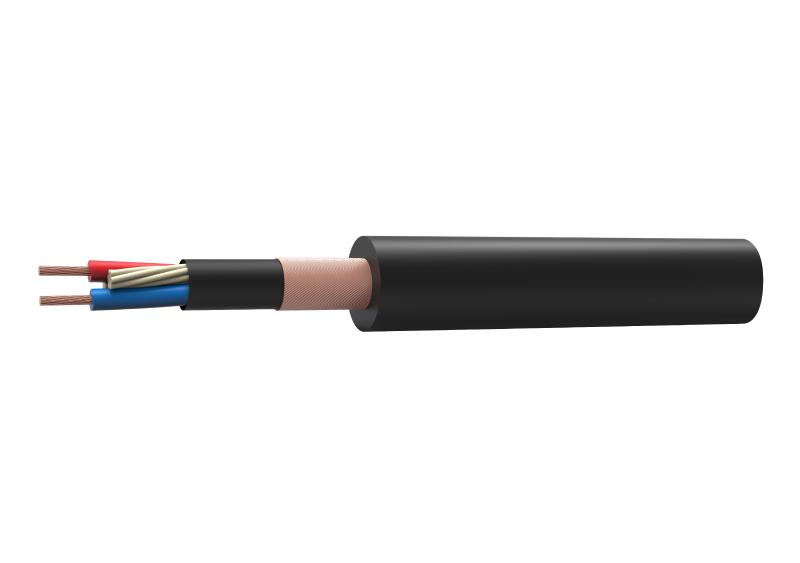

Kirlin Original Microphone Cable
● 24 x2 gauge Copper conductor
● Copper spiral shielding with 90% coverage
● PVC jacket with 6.3mm outer diameter
| Conductor Gauge (AWG): | 24 |
| Number of Conductors: | 2 |
| Number of Strands: | 19 x2 |
| Strand OD (mm): | 0.12 |
| Conductor Section (mm2): | 0.215 |
| Conductor Structure (mm2): | 2 x0.215 |
| Conductor Material: | Copper |
| Insulation OD (in): | 0.053 x2 |
| Insulation OD (mm): | 1.35 x2 |
| Insulation Material: | PE |
| Type of Shield: | Spiral |
| Shield Material: | Copper |
| Shield Coverage (%): | 90 |
| Jacket Material: | PVC |
| Jacket Color: | Black(BK) |
| Outside Diameter (in): | 0.248 |
| Outside Diameter (mm): | 6.3 |

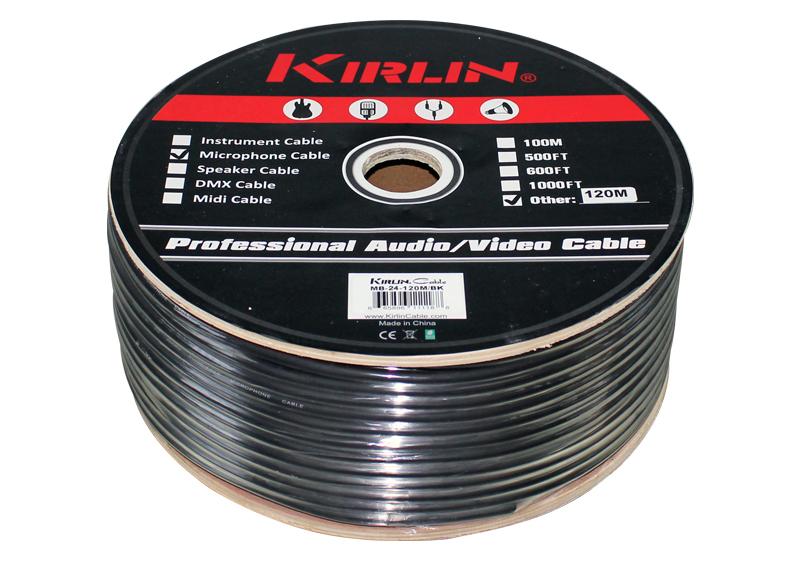

| Large Roll (ft/Roll): | 1000 |
| Large Roll (m/Roll): | 305 |
