MB-20

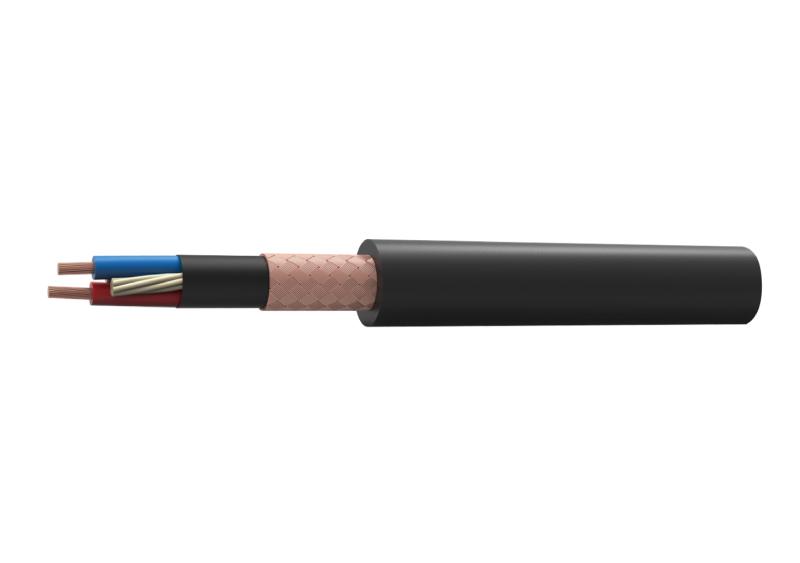

Kirlin Original Microphone Cable
● 20 x2 gauge Copper conductor
● Copper braided shielding with 95% coverage
● PVC jacket with 6.5mm outer diameter
| Conductor Gauge (AWG): | 20 |
| Number of Conductors: | 2 |
| Number of Strands: | 46 x2 |
| Strand OD (mm): | 0.12 |
| Conductor Section (mm2): | 0.5 |
| Conductor Structure (mm2): | 2 x0.5 |
| Conductor Material: | Copper |
| Insulation OD (in): | 0.063 x2 |
| Insulation OD (mm): | 1.6 x2 |
| Insulation Material: | PE |
| Type of Shield: | Braid x1 |
| Shield Material: | Copper |
| Shield Coverage (%): | 95 |
| Jacket Material: | PVC |
| Jacket Color: | Black(BK) |
| Outside Diameter (in): | 0.256 |
| Outside Diameter (mm): | 6.5 |

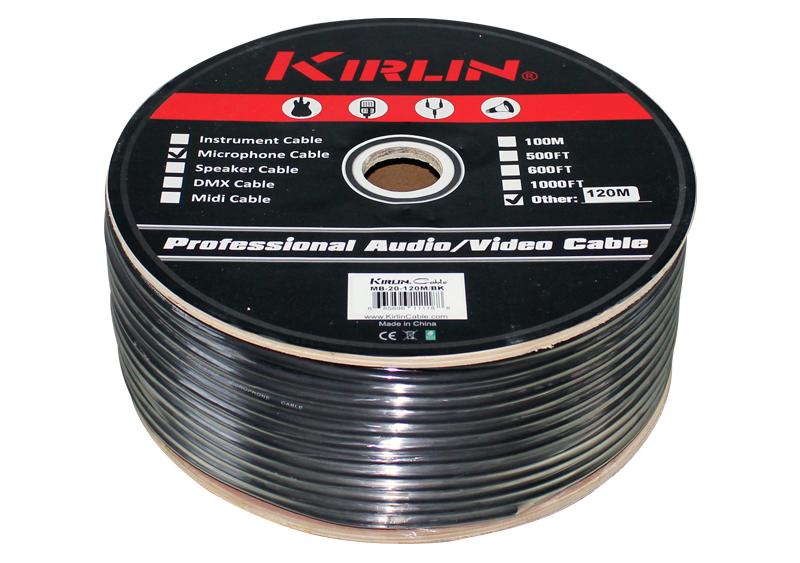

| Large Roll (ft/Roll): | 1000 |
| Large Roll (m/Roll): | 305 |
